Our Products

Crushing Bucket

Crushing Bucket

Model	UJ-120	UJ-200	UJ-300	UJ-670	UJ-870
Excavator Weight (t)	10~18	18~30	30~45	50~70	75~90
Bucket Capacity ( m3 )	0.45	0.74	1.15	1.47	2.23
Oil Flow (l/min)	180	260	260	450	600
Feeding Size (mm)	400*550	500*700	500*1000	670*1150	670*1316
Whole Size (mm)	161710551313	250613251731	234615761665	288221052137	288222712137
Overall Weight (kg)	1359	3450	4220	6850	7668

Compactor Plate

Compactor Plate

Model	MSB02	MSB08	MSB12	MSB16	MSB18
Machine Class（t）	2-4	6-10	12-17	18-23	25-36
Rotary Screen Diameter（mm）	610	810	1000	1350	1500
Rotating Speed（r/min）	60	65	65	65	65
Working Pressure（bar）	150	220	230	250	250
Oil Flow（L/min）	30	60	80	110	110
Weight（kg）	175	630	1020	1920	2430

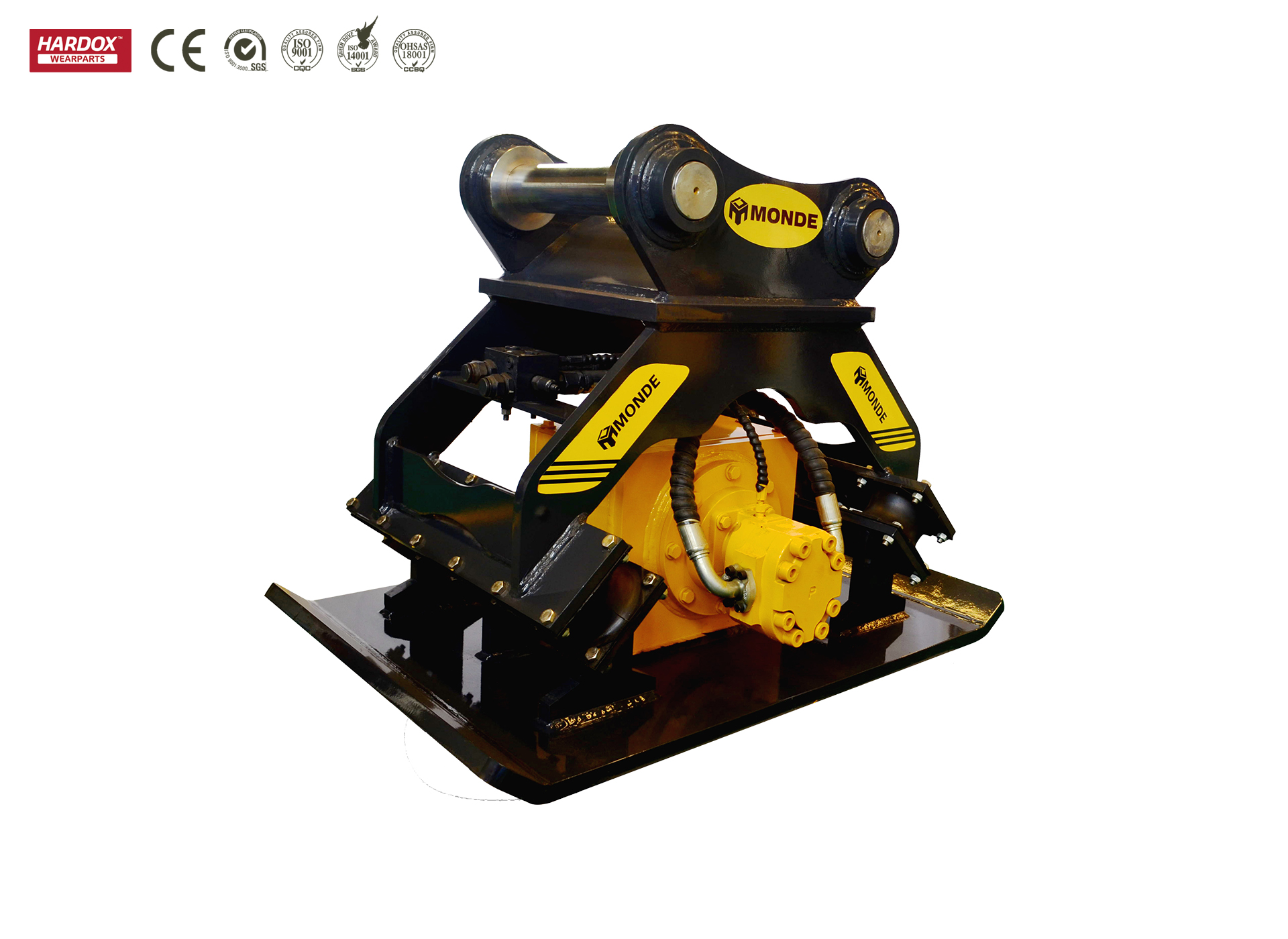

Compactor Plate

Compactor Plate

Model	6T	13T	20T	30T
Working Flow(L/min)	20-40	40-60	60-80	80-120
Vibration Plate(mm)	700*480	844*850	1120*895	1350*1080
Working Pressure (mpa)	13-15	13-15	13-15	13-16
Dimensions (mm)	800480685	1000850838	1313895992	157810801128
Weight (kg)	300	570	960	1320

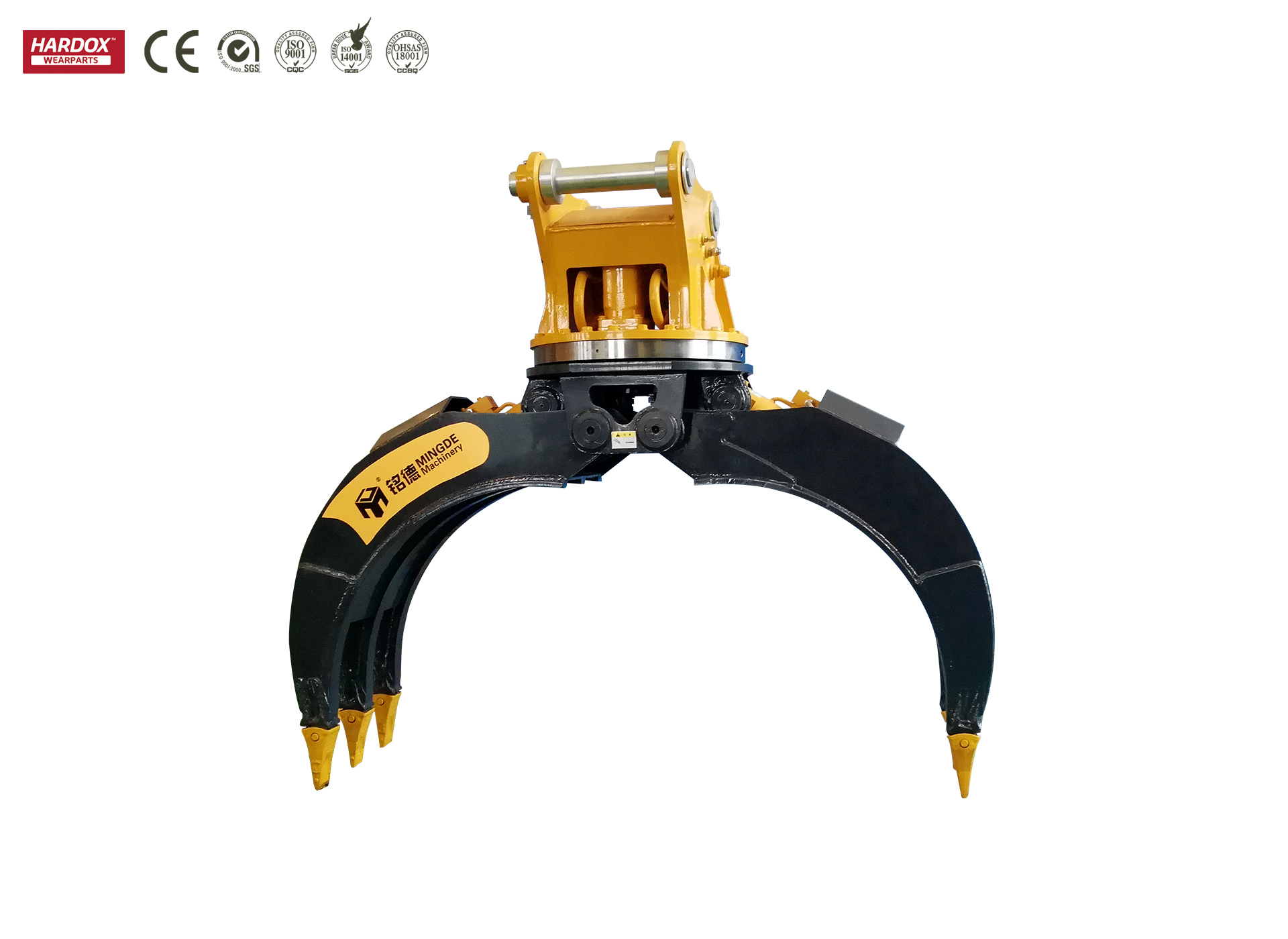

Hydraulic Grapple

Hydraulic Grapple

Model	MWR10	MWR15	MWR20	MWR30	MWR35
Weight（kg）	390	740	1380	1700	1900
Opening Size（mm）	1400	1800	2300	2500	2500
Working Flow (L/min)	50-100	90-110	100-140	130-170	200-250
Apply to（ton）	7-11	12-16	17-23	24-30	31-40

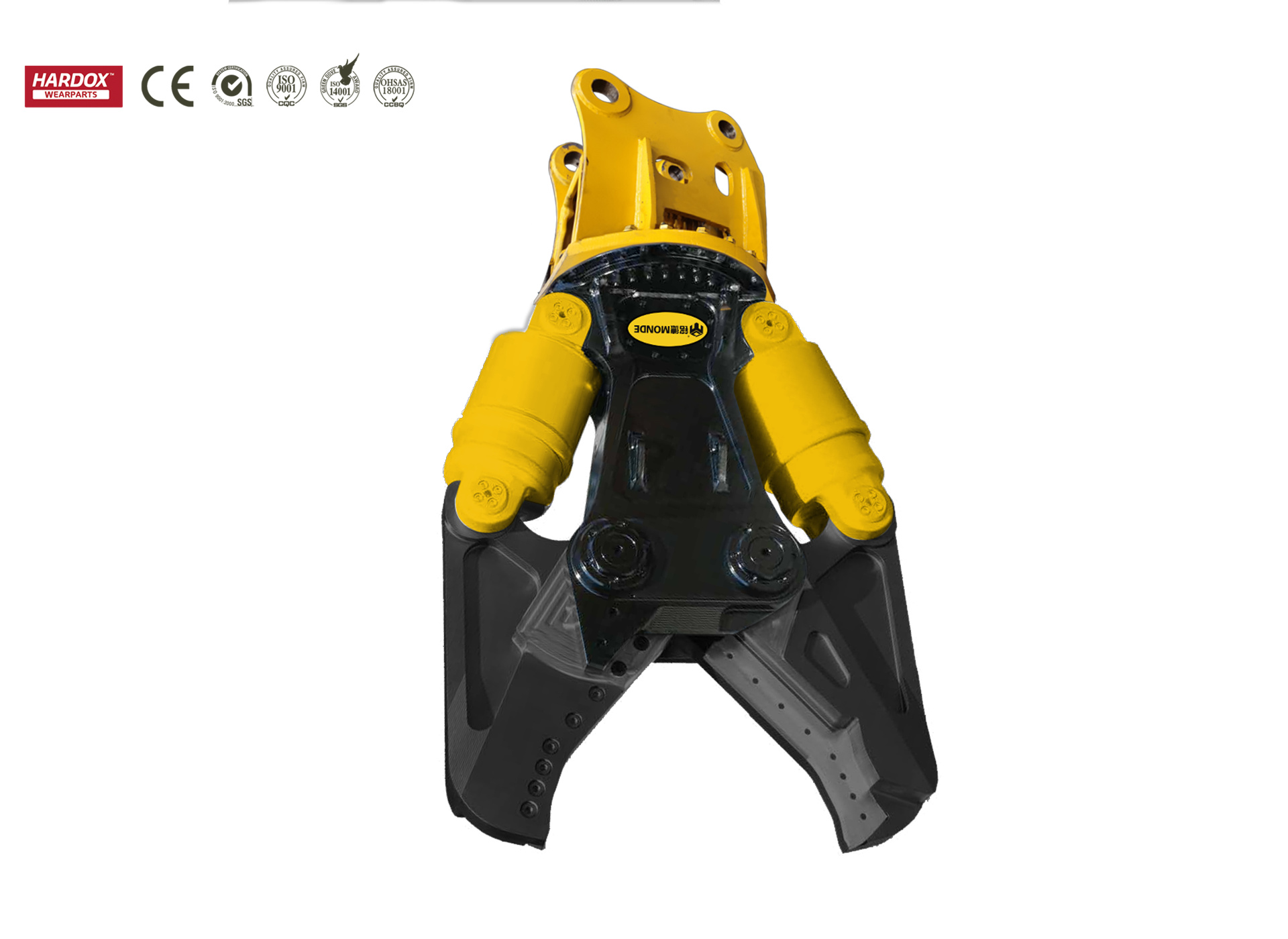

Hydraulic Shear

Hydraulic Shear

Model	MHS-80	MHS-120	MHS-200
Machine Class（t）	6-8	12-16	18-23
Max Opening（mm）	450	720	900
Working Pressure（bar）	270	320	320
Oil Flow（L/min）	80	100	150
Weight（kg）	550	1310	2100

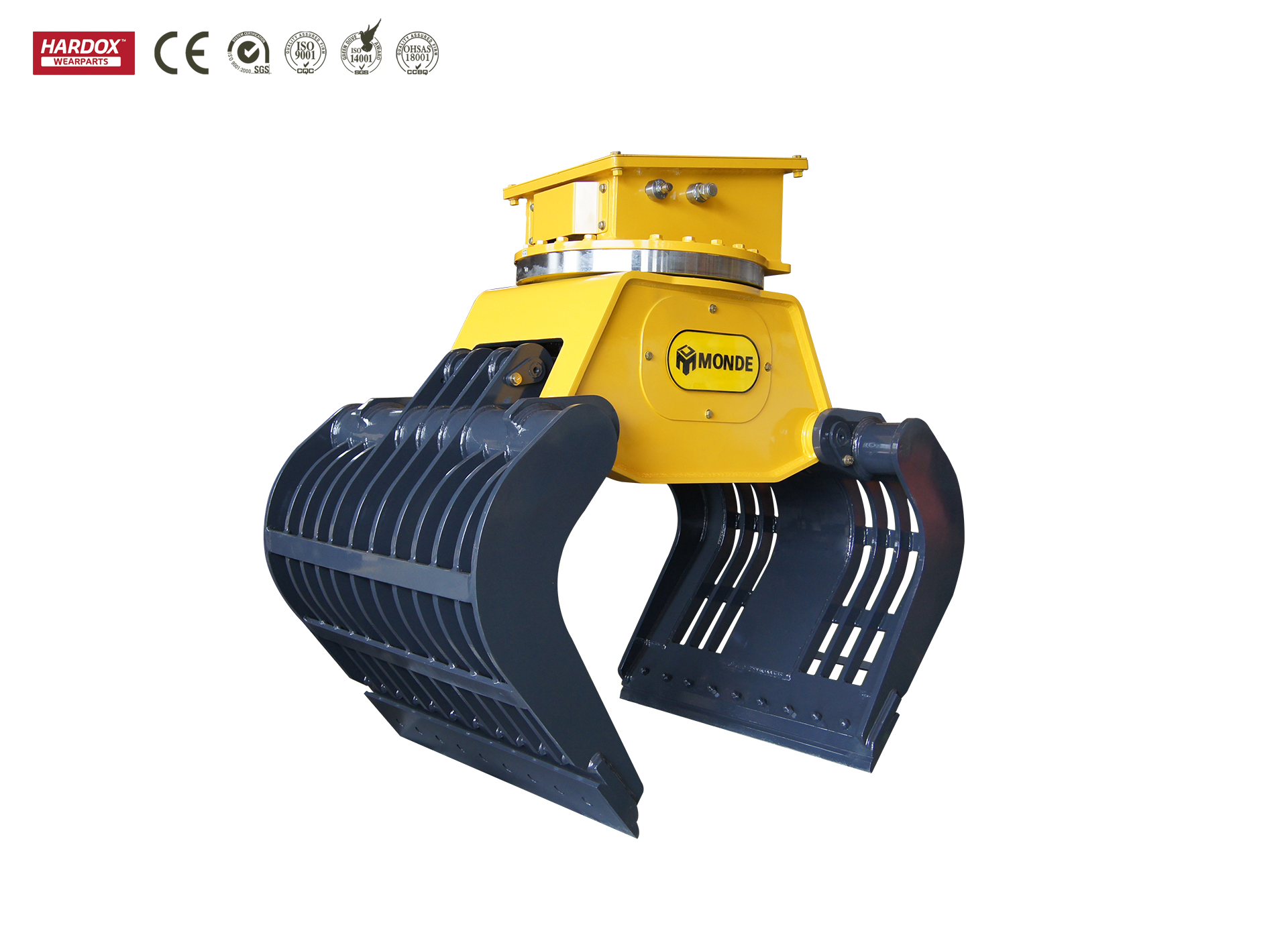

Demolition Grapple

Demolition Grapple

Model	MDG06	MDG08	MDG15	MDG20	MDG30
Machine class（t）	4-6	7-10	11-17	16-23	25-40
Jaw Width（mm）	400	550	800	1000	1250
Max Opening（mm）	1000	1400	1800	2050	2400
Working Pressure（bar）	320	320	350	350	350
Oil Flow（L/min）	50	50	80	80	80
Weight（kg）	280	400	960	1450	2080

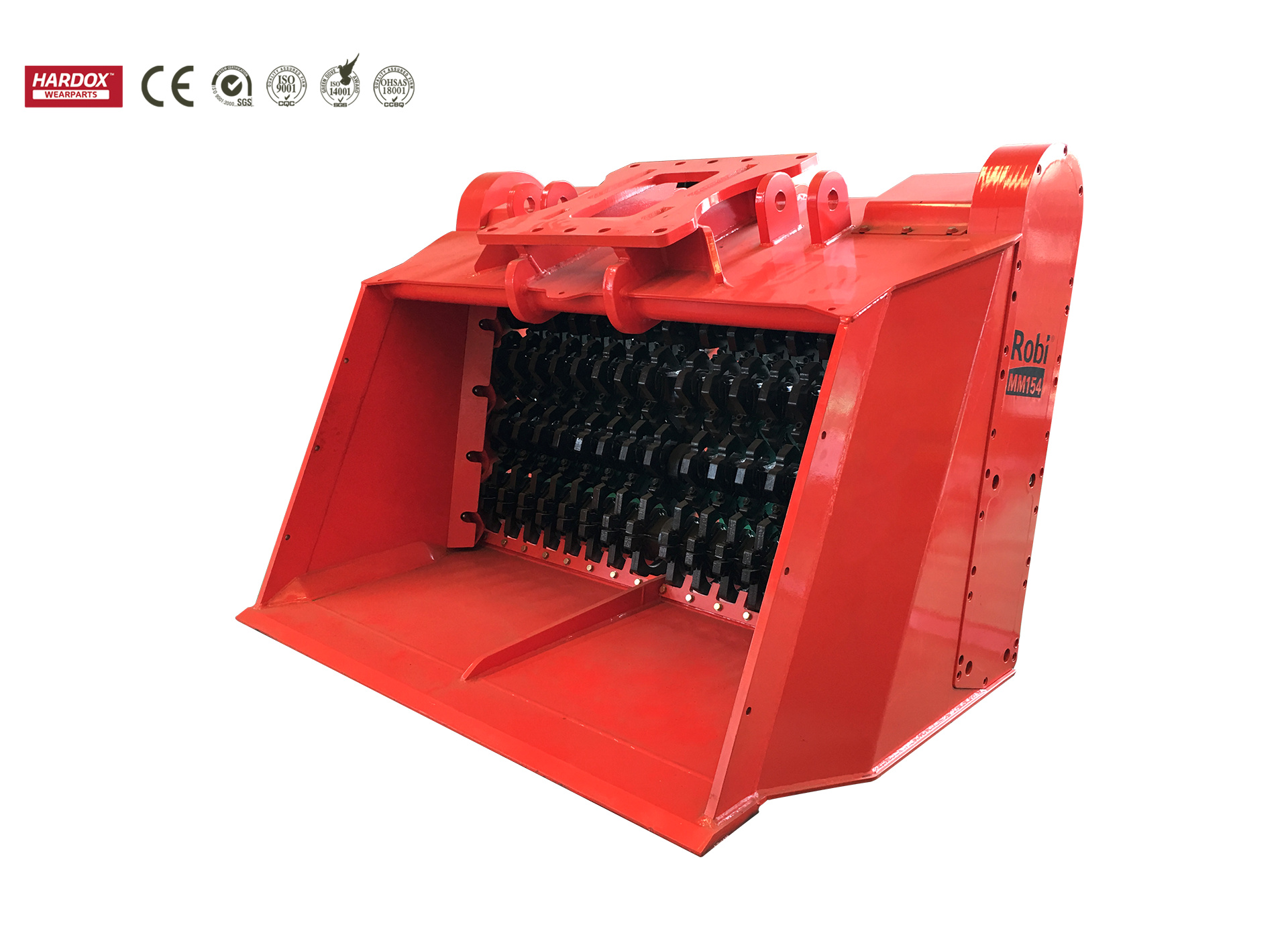

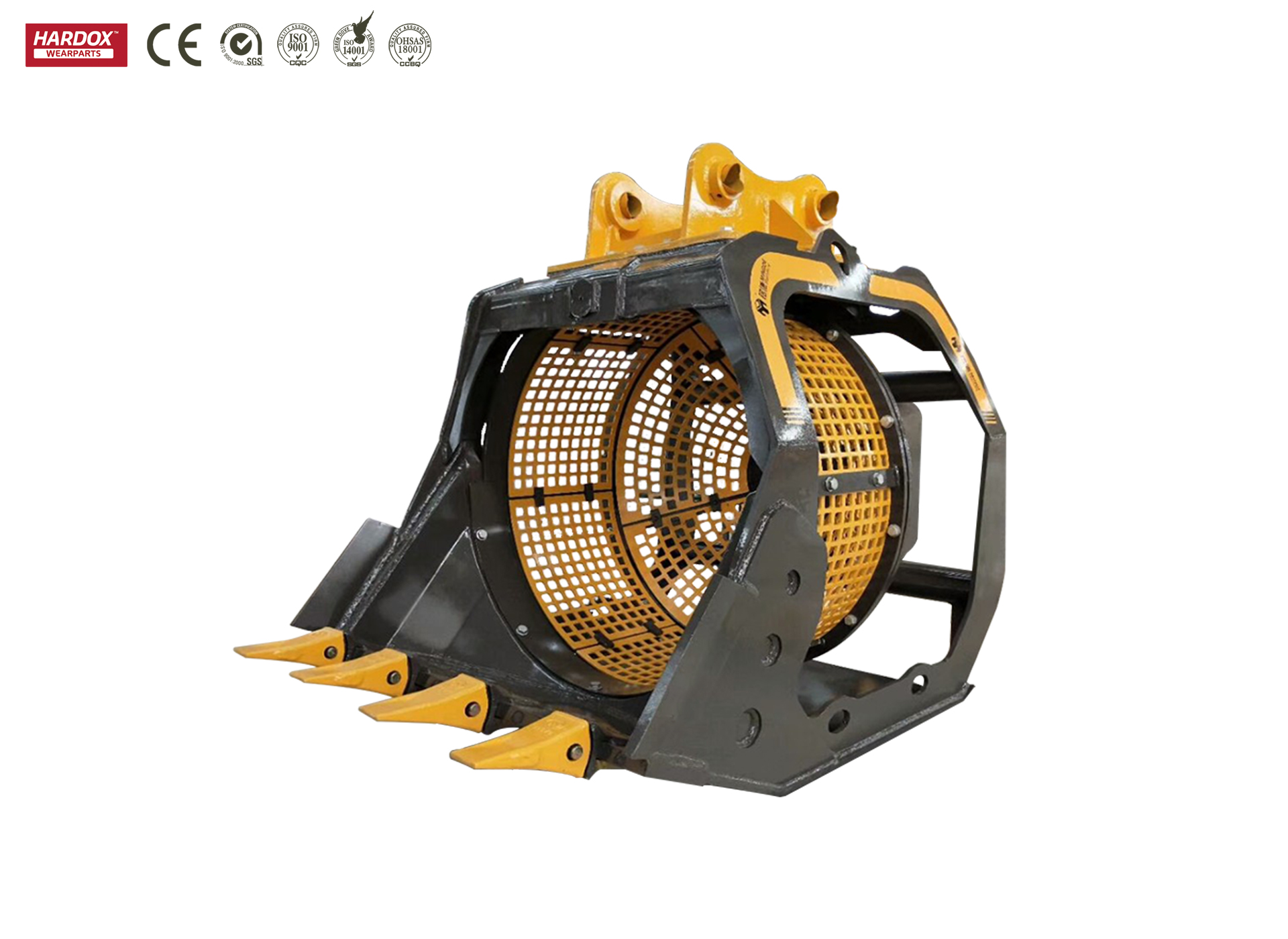

Robi Screening Bucket

Robi Screening Bucket

Model	MM062	MM104	MM154	MM184	MM234
Machine Class（t）	10-16	16-24	21-34	28-45	35-50
Width（mm）	1470	1470	2125	2125	2598
ISO/SAE（m3）	0.6/0.75	1.2/1.4	1.7/1.9	1.8/2.1	2.5/3.0
Working Pressure（bar）	120-140	160-200	160-200	160-200	160-200
Oil Flow（L/min）	100-120	160-230	160-230	160-230	160-230
Weight（kg）	1250	1950	2600	3100	3400

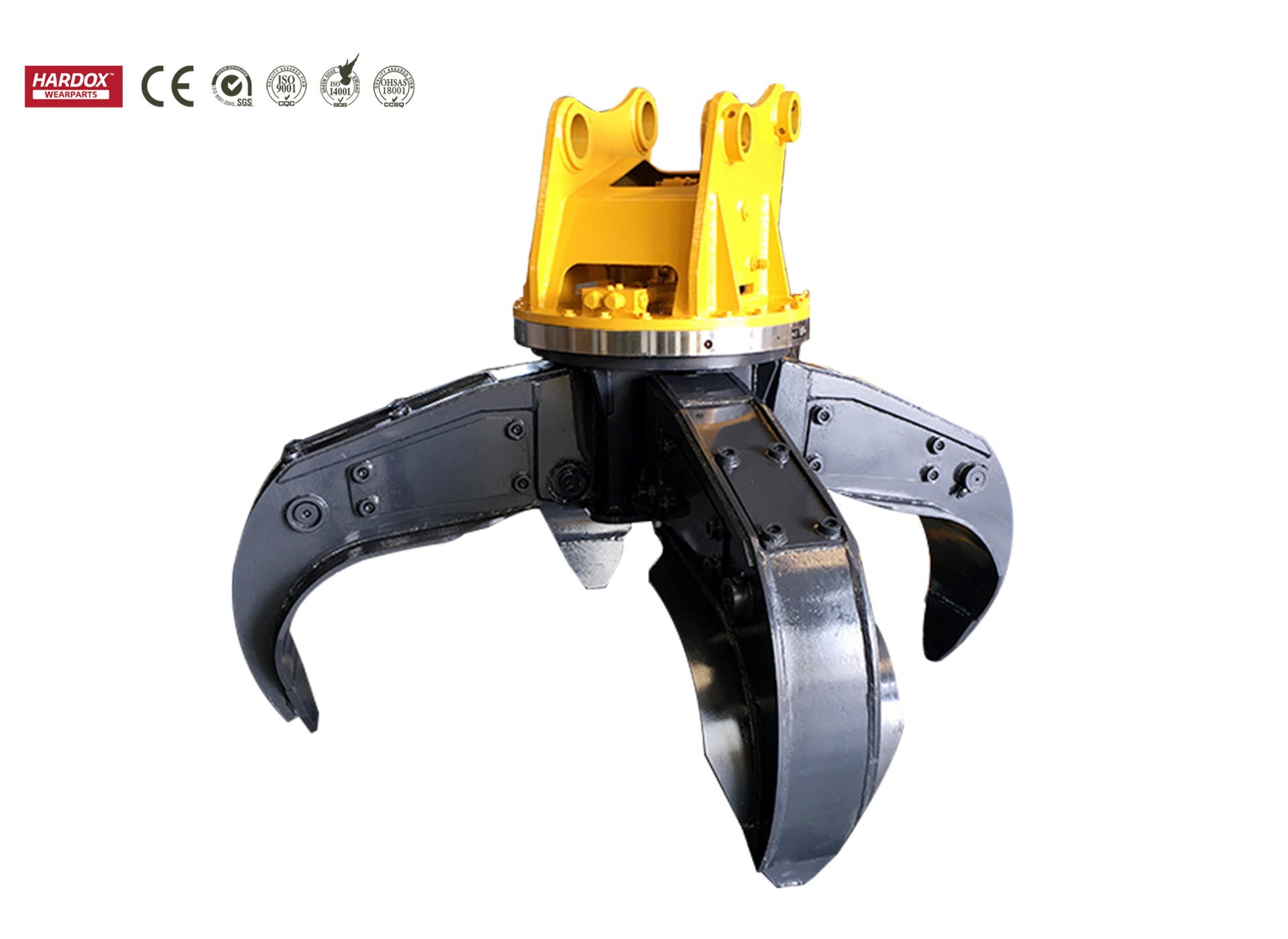

Multi Peel Clamp

Multi Peel Clamp

Model	MPB-120	MPB-200	MPB-300	MPB-400
Machine Class（t）	10-15	16-23	25-36	38-50
Max Opening（mm）	1350	1960	2400	2600
Working Pressure（bar）	220	250	250	250
Oil Flow（L/min）	80	150	180	220
Weight（kg）	630	1500	1930	2230

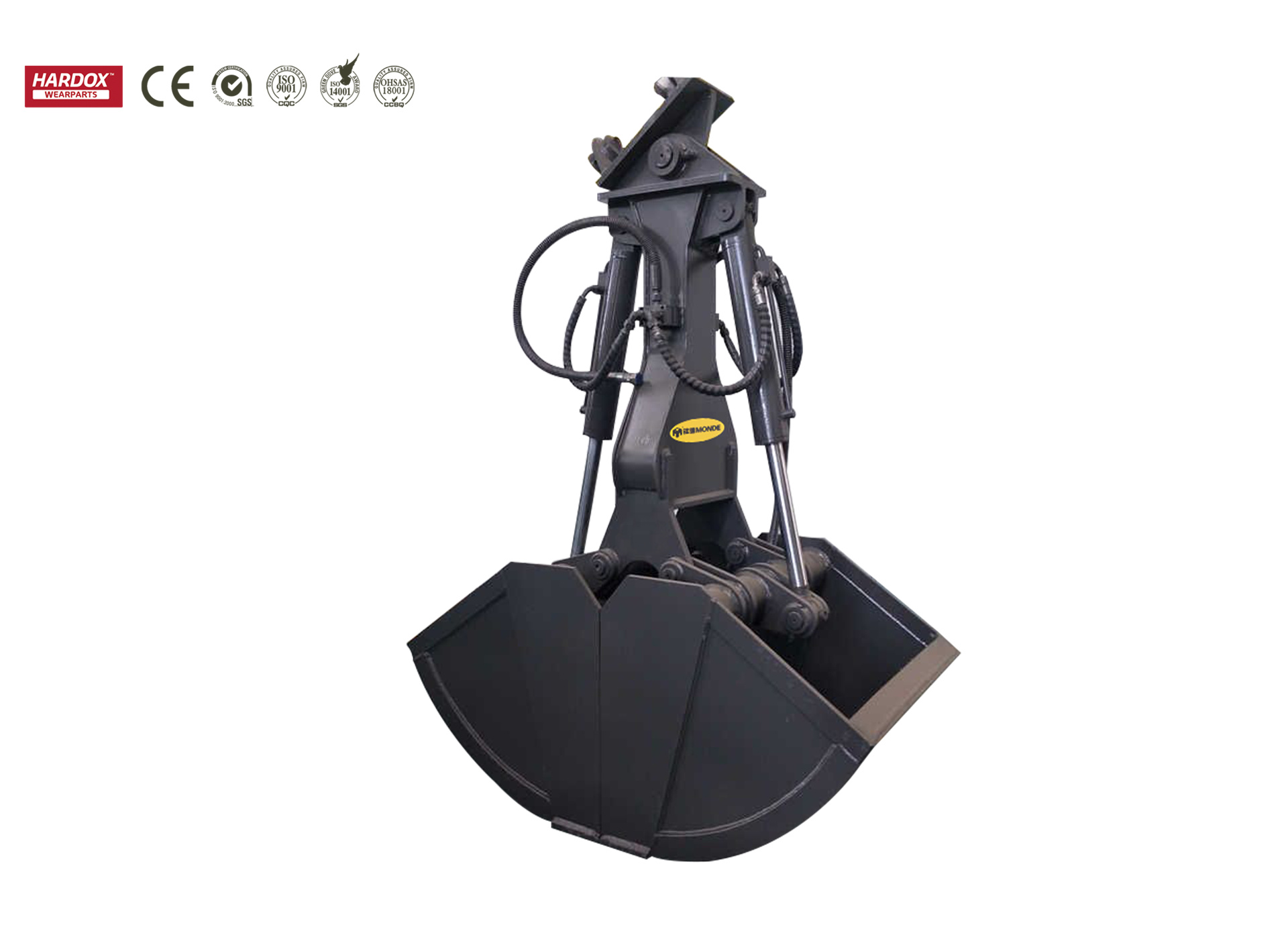

Clampshell Bucket

Clampshell Bucket

Model	Unit	Shell bucket (non-rotating)
Apply to	T	5-8	20	30	35
Bucket capacity	mm	0.35	1	1.5	1.8
Bucket width	m3	800	1000	1160	1400
Blade thickness	mm	NM400/T16	NM400/T20	NM400/T20	NM400/T20
Side board thickness	mm	Q345/T14	NM400/T18	NM400/T20	NM400/T20
Total length	mm	1191	1898	2028	2028
Total width	mm	840	1076	1240	1480
Total height	mm	1676	2718	2877	2739
Weight	kg	467	1340	1538	1805
Opening size	mm	1424	2041	2207	2207

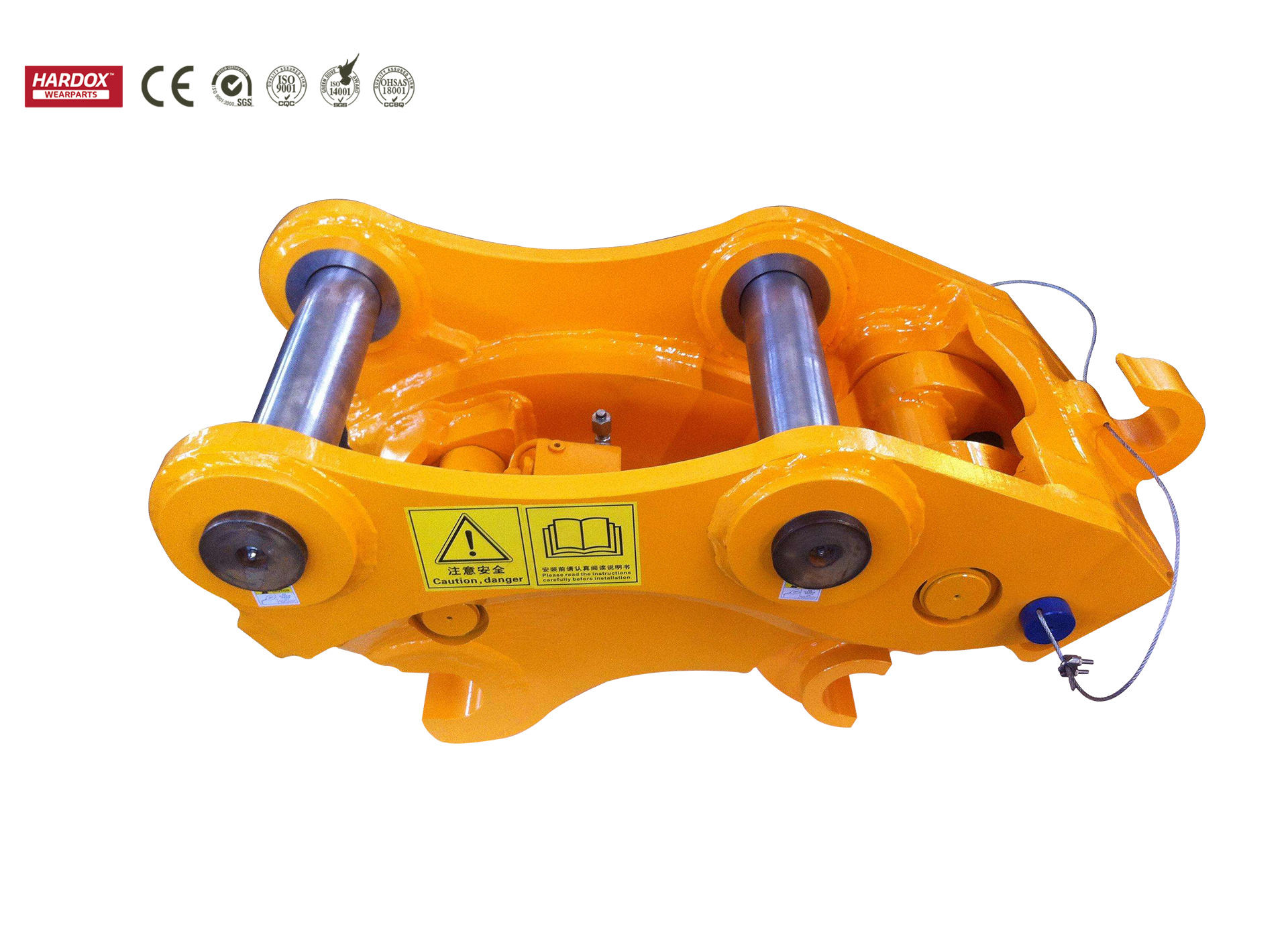

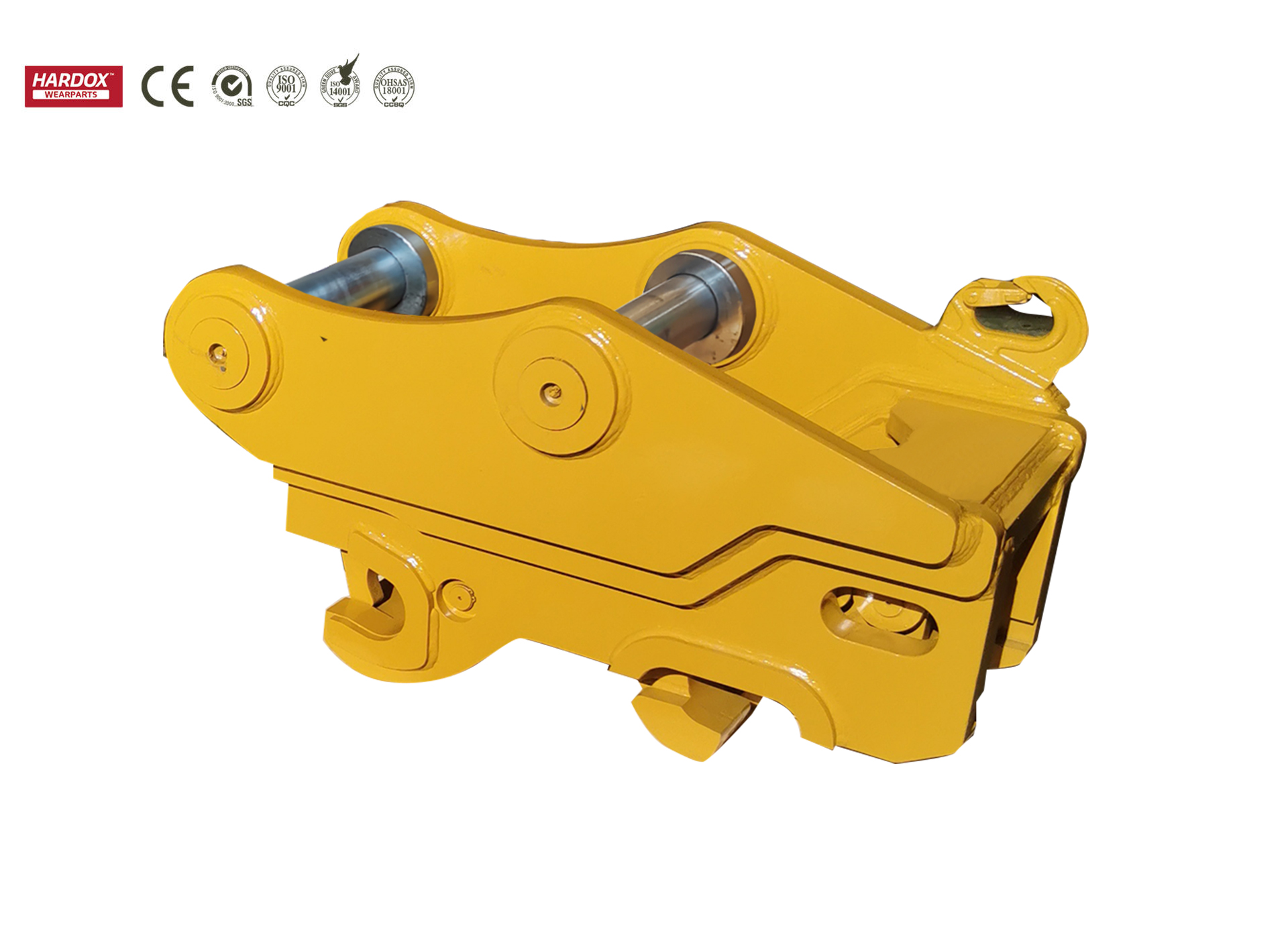

Quick Hitch

Quick Hitch

Model	MKY4T	MKY6T	MKY10T	MKY22T	MKY30T	MKY45T	MKY60T	MK75T
C.C Distance（mm）	86-200	230-270	380-420	460-480	473-540	510-580	620-710	600-800
Area Distance（mm）	86-185	155-170	232-315	306-340	375-411	420-510	580-670	620-750
Pin Dia（Φ）	25-40	45-50	50-70	70-80	80-90	100-110	110-120	120-140
Apply to（ton）	1.5-4	5-8	9-16	17-23	25-33	35-48	50-65	70-79

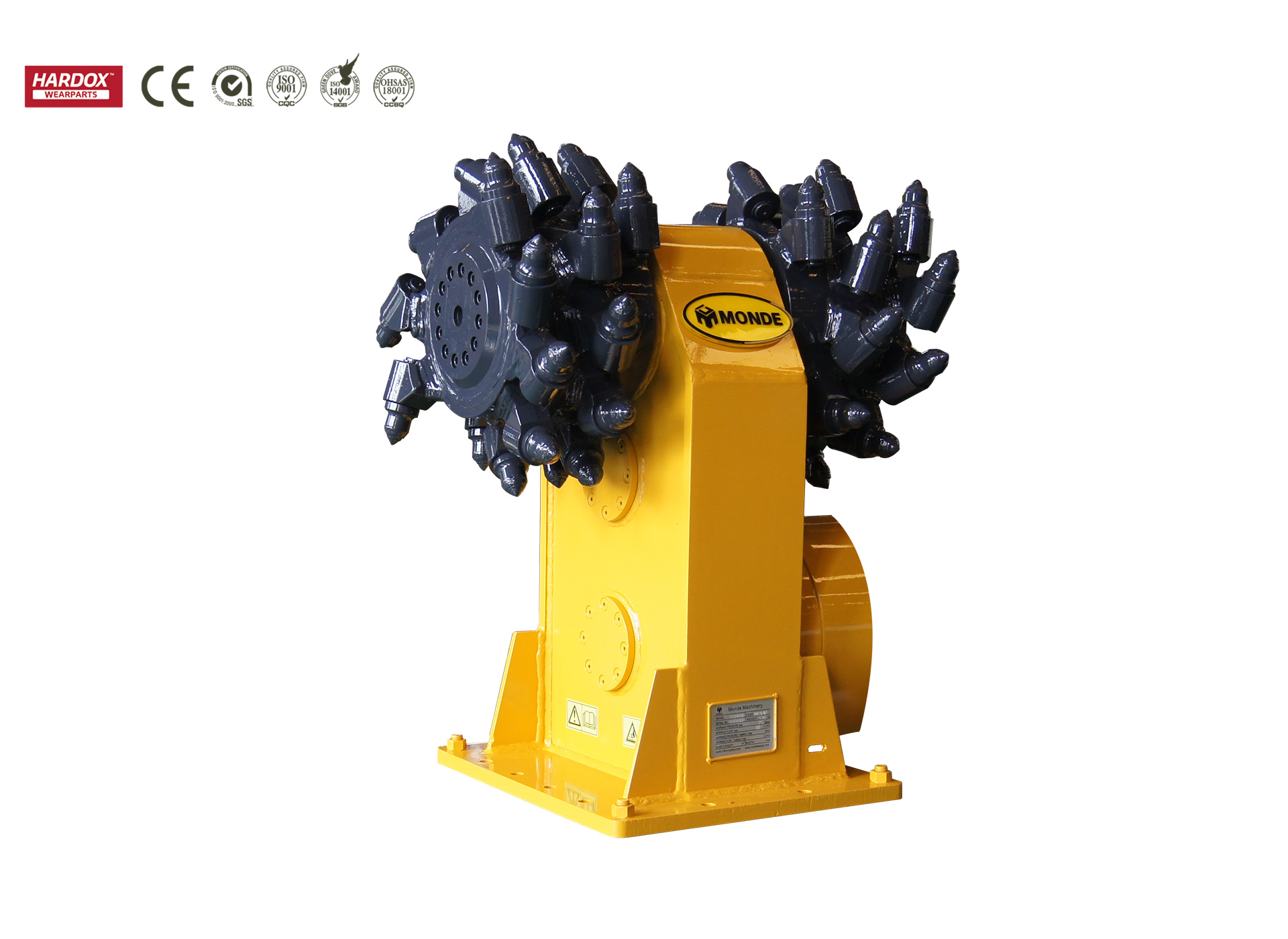

Drum Cutter

Drum Cutter

Model	MD80	MD150	MD240	MD350	MD450
Operating Weight（kg）	372	845	1340	1860	2620
Input Power（kw）	25	30	52	60	120
Max. Power（kw）	34	40	62	70	140
Max. Operating Power（bar）	350	350	350	350	350
Oil Flow（I/min）	30-50	60-90	80-140	140-210	260-450
Cutting Speed（rpm）	120-200	90-130	65-113	50-9	40-70
Cutting Head Torque（Nm）	3200	5800	10900	24000	36000
Cutter Dia.（mm）	360	460	590	620	730
Carrier Weight（tons）	3.0-8.0	8.0-15.0	15.0-24.0	18.0-35.0	30.0-45.0

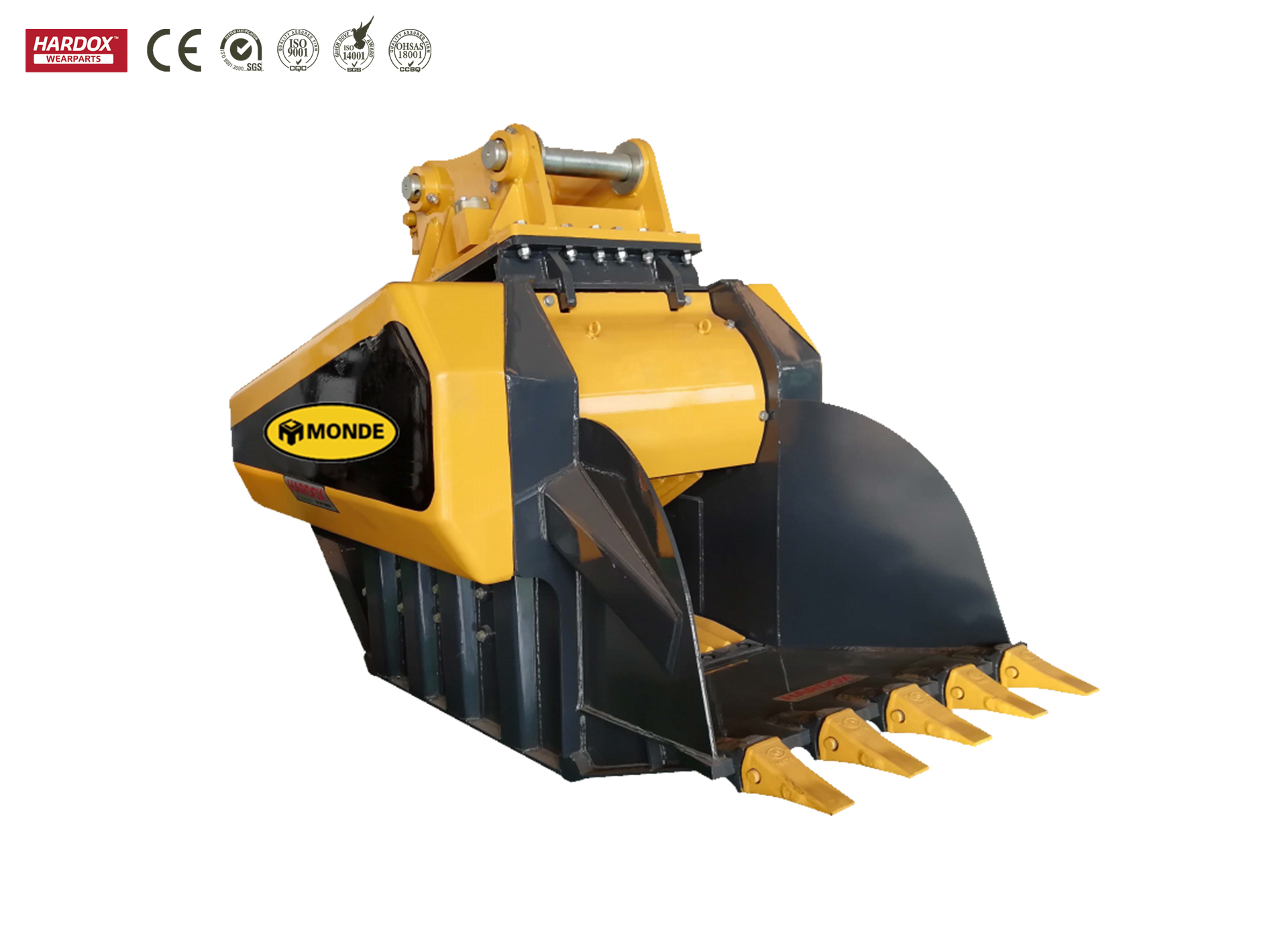

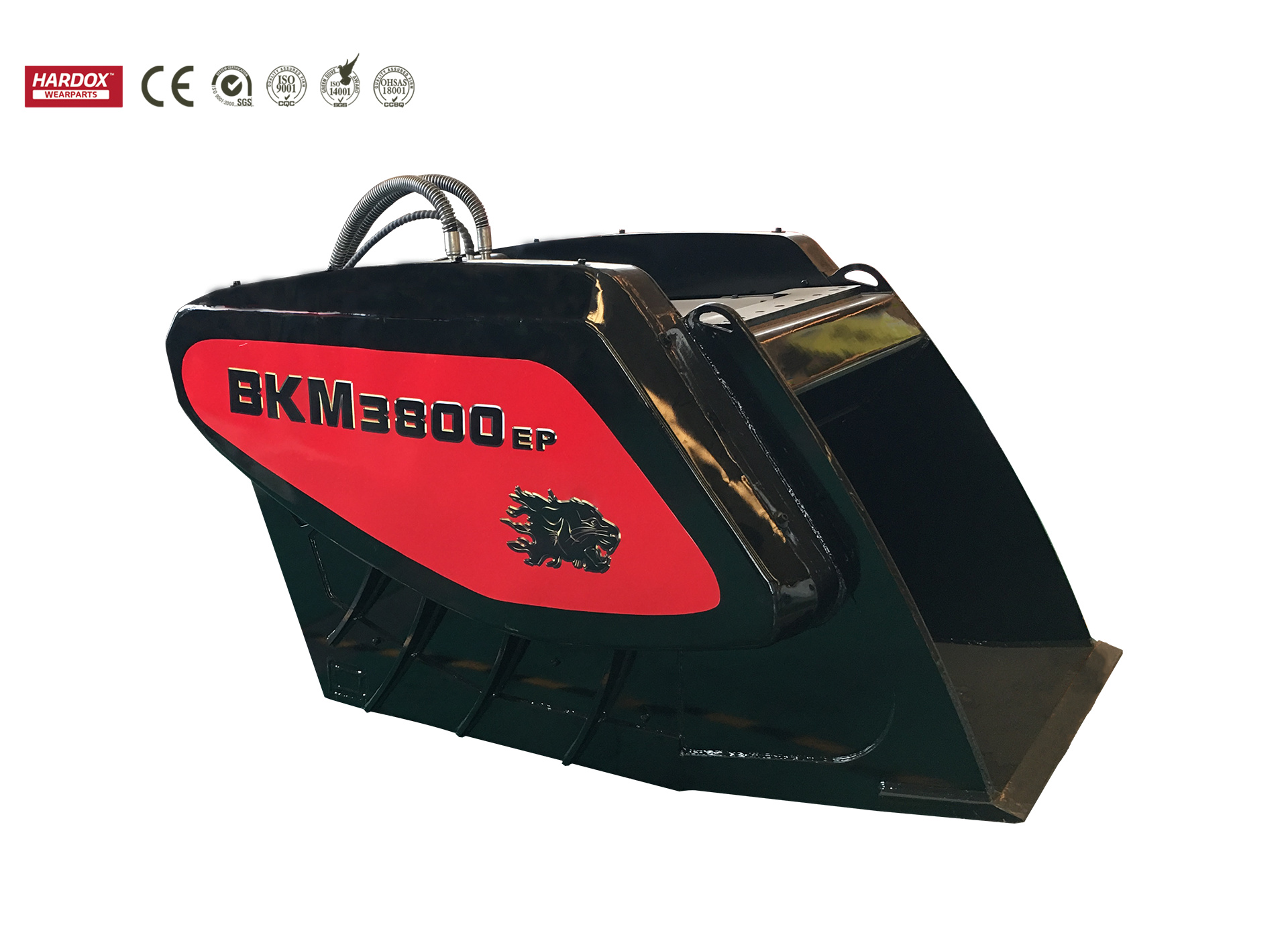

BKM Crusher Bucket

BKM Crusher Bucket

Model	BKM2200EP	BKM3000EP	BKM3800EP	BKM5500EP
Excavator Weight(t)	15-24	24-30	30-45	45-70
Feeding Size(A*B)(mm)	800*505	900*505	1120e530	1450B580
Working Pressure(bar)	220	220	220	220
Oil Flow(l/min)	>100	>145	>200	>290
Discharge Port Size(mm)	10-100	12-100	12-120	12-120
Capacity(m3)	0.51	0.8	1.00	1.7
Size(LWH)(mm)	1945/1105/1285	2215/1215/1375	2355/1455/1395	2575/1825/1555
Weight(kg)	2200	3100	4300	6500

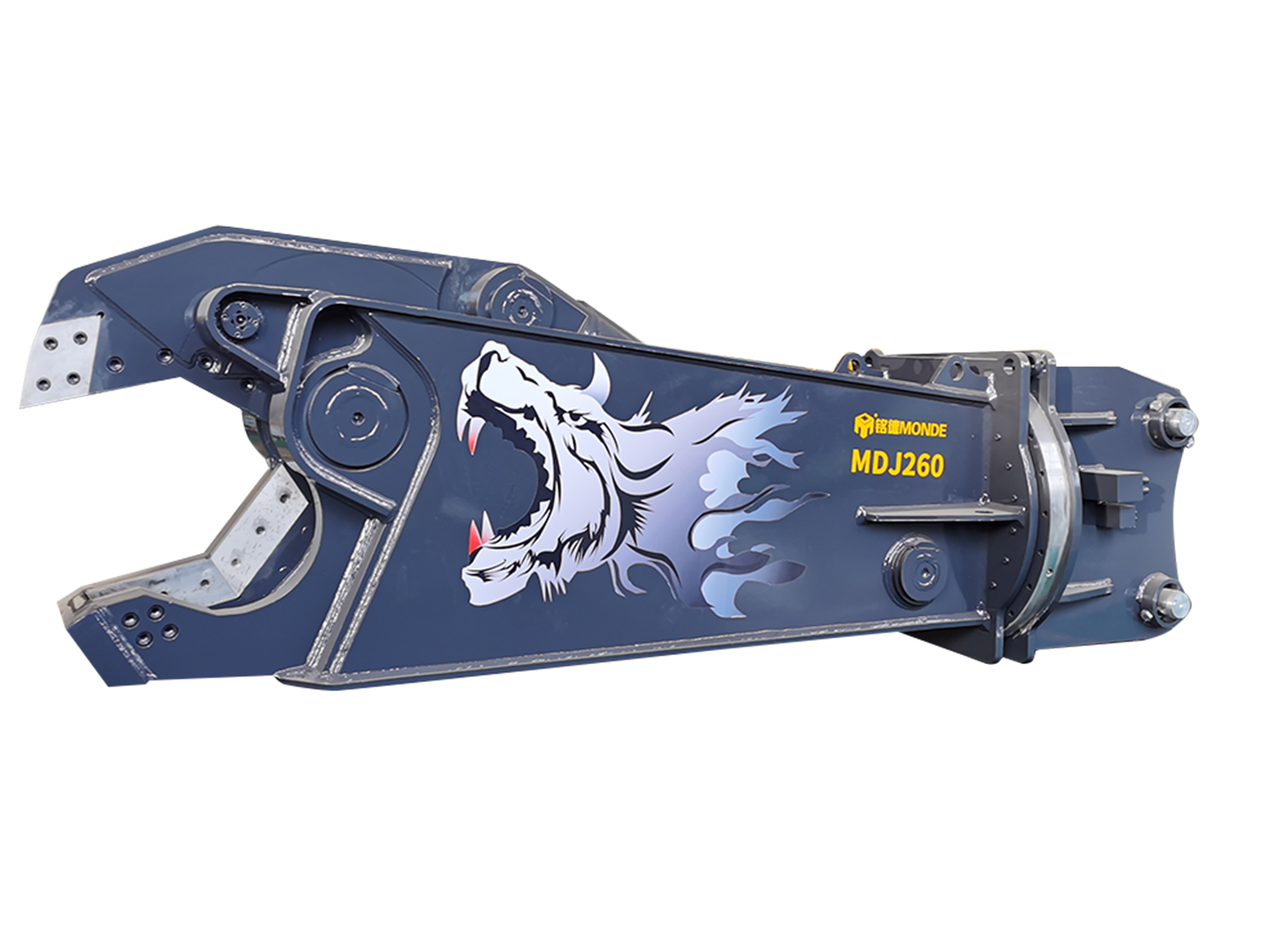

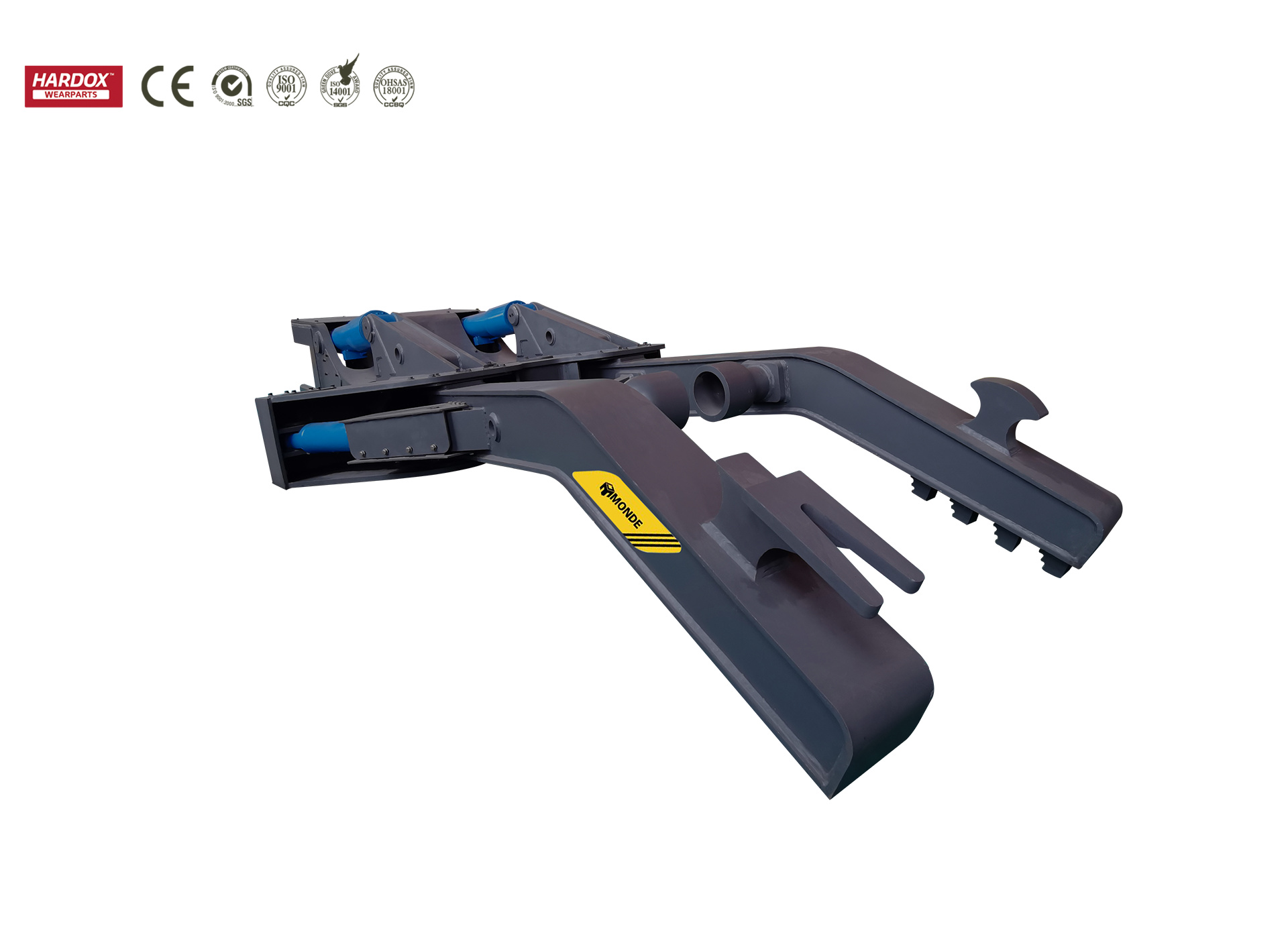

Dismantled Hydraulic Shear

Dismantled Hydraulic Shear

Through the close cooperation with the front press frame, our dismantled machine can dismantle scrapped cars efficiently and environmentally.
1.360 degree hydraulic rotation, increase working efficiency.
2.Easy to replace the blade, reduces machine downtime.
3.Strong mechanical properties can directly dismantle quickly without pre-treatment, such as fused chassis frame.

Class	Total length (mm)	Shear Weight(Kg)	Min.Opening size(mm)	Max.Opening size(mm)	Jaw shear force (KN)	Pressure (Mpa)	Front pressure frame weight(kg)	Total length (mm)
20-24t	2520	2400	0	745	1650	32	3700	5065

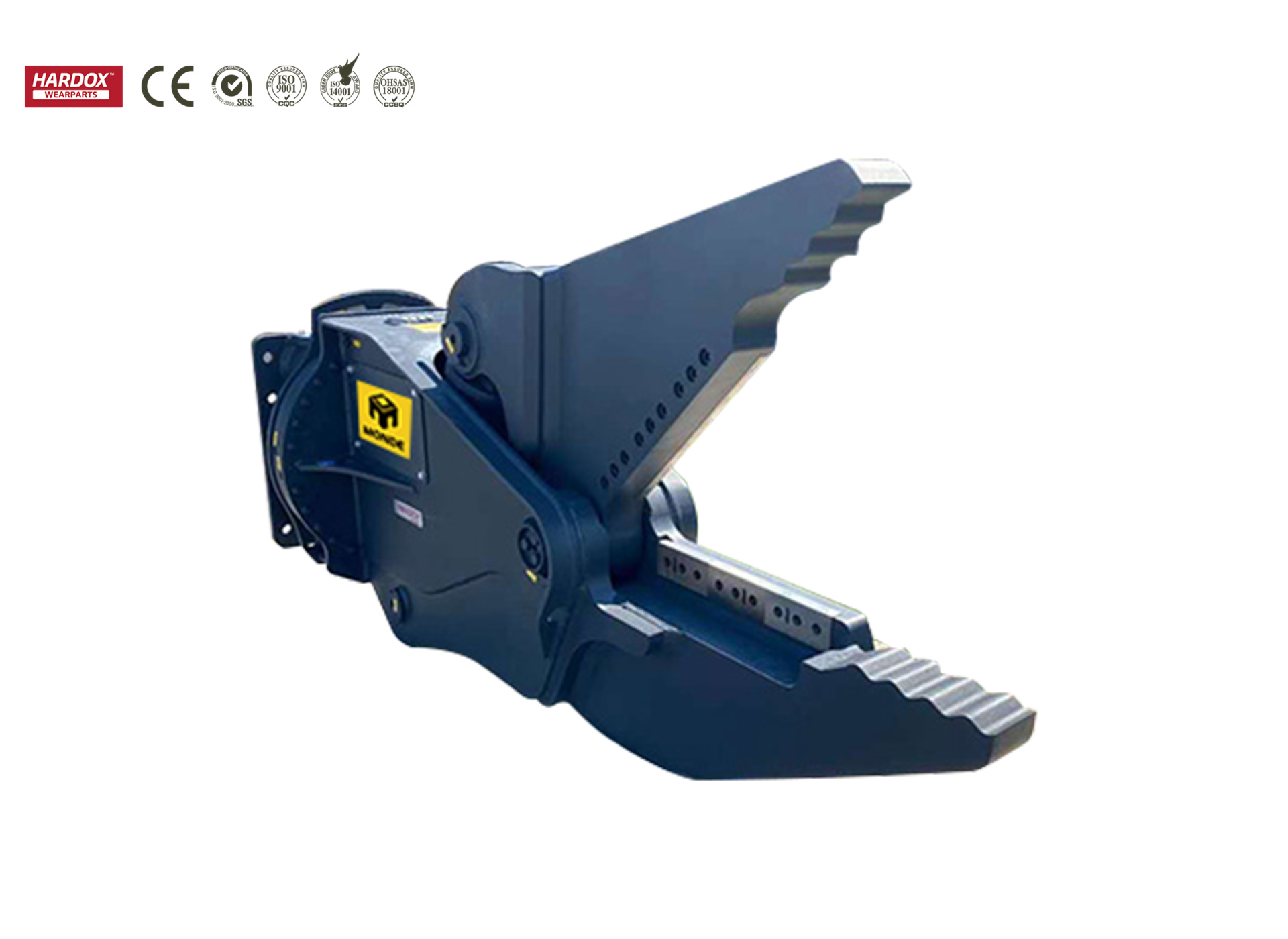

Eagle Shear

Eagle Shear

Class	Total length (mm)	Total width (mm)	Weight(Kg)	Opening size (mm)	Jaw shear force (t)	Middle shear force (t)	Oil flow (L/min)	Pressure (Mpa)
22-35t	2978	840	2530	550	163	335	300	30

Mini Screening Bucket

Grapple Bucket

Loader Bucket

Slope Bucket

Grapple

Compaction Roller

Pulverizer

Hammer

Ripper

Rake

Double Lock Hydraulic Quick Hitch

Tilt Quick Hitch

Brush Cutter

Tree Cutter

Wood Cutter

Strength Boom

Long Boom
